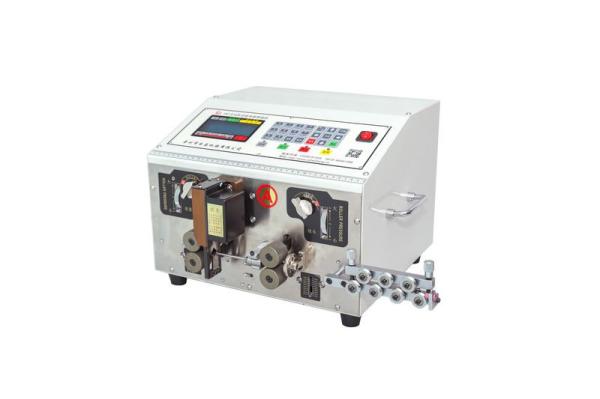

0.25kw 0.5mm2 25mm2 Automatic Wire Stripping Machine And Twisting

Name: 025kw 05mm2 25mm2 Automatic Wire Stripping Machine And Twisting
Brand: zhiyao
Price: 1 USD

0.25kw 0.5mm2 25mm2 Automatic Wire Stripping Machine And Twisting Manufactures

Brand Name : zhiyao

Model Number : JY515E2

Place of Origin : China

MOQ : 1set

Price : Details

Payment Terms : T/T

Supply Ability : 200 sets / month

Delivery Time : 5-8 work days

Packaging Details : Wooden packing

Name : 1-25mm² Automatic wire cutting, peeling and twisting machine,Wire Stripper（1-25mm²）

Dimensions : L418*W358*H308mm

weight : 38KG

power supply : 220V/500W

Cut length : 1-9999.99mm

Peel length : 0.5-30mm

The number of intermediate strippings : With 15 intermediate cuts

Stripping range : 0.5-25mm² BVR multi-stranded soft wire 0.5-16mm² BV hard wire

The wire type : Cable wire, PVC, Teflon, glass wire, BV wire, BVR wire, sole copper wire

Cut tolerance : ±(0.2+0.2*L)mm

Catheter diameter : 1-10mm

Efficiency : 30Root/MIN

Contact Now

1-25mm² Automatic wire cutting, peeling and twisting machine,Wire Stripper(1-25mm²)

Feature Description:

This machine is mainly aimed at the automotive industry, the power industry, the electric control cabinet, the battery box of the wire, the whole coil of wire according to the required length, stripping head to cut and peel well, thereby greatly improving the efficiency. BV hard wire, BVR soft wire are easy to use.

Model	JY515E2
Dimensions	L418W358H308mm
weight	38KG
power supply	220V/500W
Cut length	1-9999.99mm
Peel length	0.5-30mm
The number of intermediate strippings	With 15 intermediate cuts
Stripping range	0.5-25mm² BVR multi-stranded soft wire 0.5-16mm² BV hard wire
The wire type	Cable wire, PVC, Teflon, glass wire, BV wire, BVR wire, sole copper wire
Cut tolerance	±(0.2+0.2*L)mm
Catheter diameter	1-10mm
efficiency	30Root/MIN
